GPS/GLONASS/Galileo Signal Distributor
Code: ELDS83G
The ELDS83G low noise filtered signal distributor is a device with one input (N type) and eight outputs (always N type), with a nominal gain of 0 dB and excellent isolation between channels.
ELDS83G is able to power itself from any of the eight output connectors, also supplying power to the external GPS antenna connected to the input.

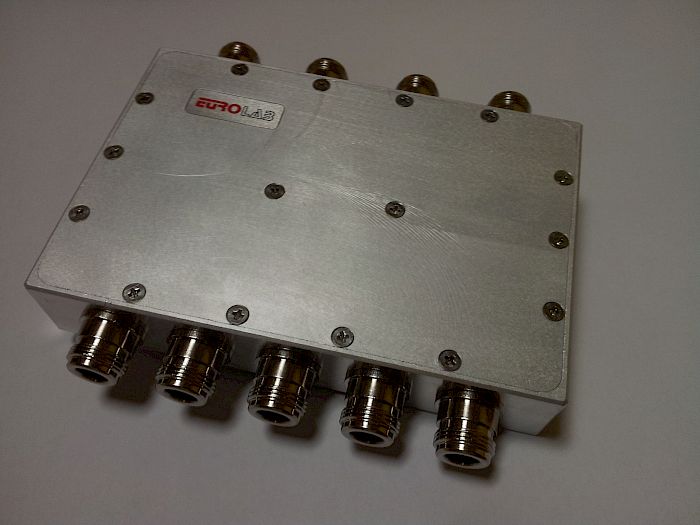

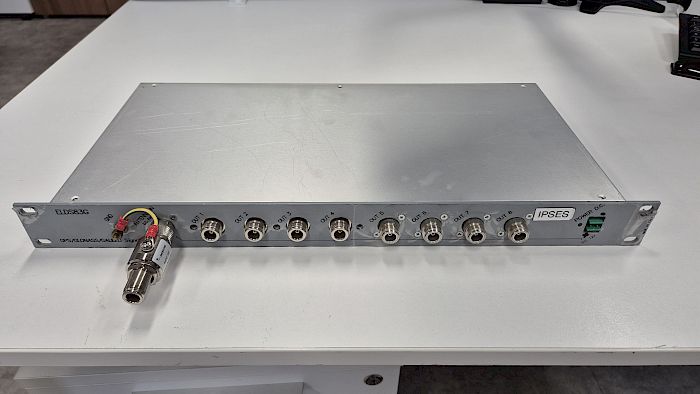

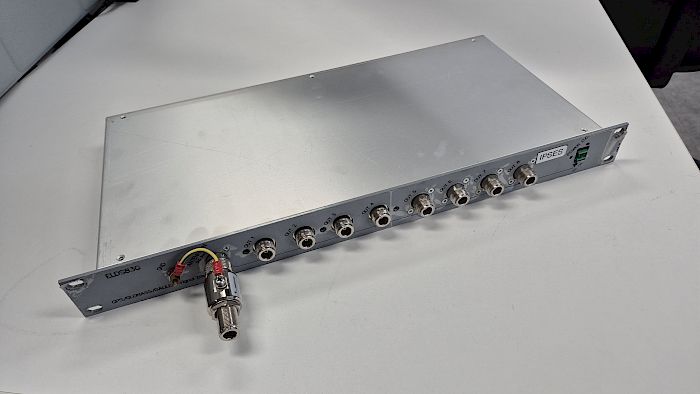

ELDS83G is available both in an aluminum box version (specially machined from solid) and in a rack-mount version
Frequency range |
| 0,4 |
| 2,4 | GHz |
Insertion Loss |
| -0,2 | 0 | 0,2 | dB |
Isolation |
| 28 | 30 | 40 | dB |
Impedence |
|
| 50 |
| ohm |
VSWR |
|
| 1,25 : 1 |
|
|
Connectors |
|
| N |
|
|
Temperature range |
| - 30 |
| + 70 | °C |
|
|
|
|
|
|
Box dimension |
| 143 x 95 x 27 mm | |||
Additional Documents
elds83g.pdf [1.6 MB]
