SerialLogger: RS232 interface standalone system for storing frames
Code: SERIALLOGGER
Category: Logger
Interface Type: RS232
Input Type: Digital

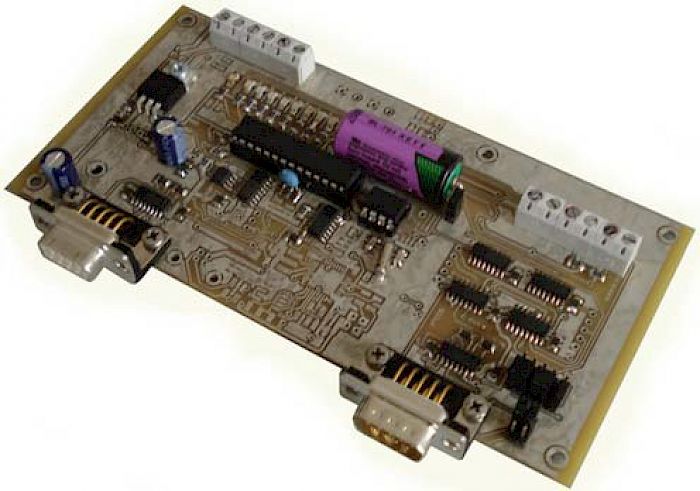

SerialLogger is a board which may monitor, ask and store data by a simple RS232 serial interface.
SerialLogger is a simple device to use (also thanks to its provided Windows software) and it is the most efficient answer to monitor and store data. Board is totally independent once set, it doesn’t need PC connection to get and monitor data; moreover, a real-time clock is present in the system which allows to store time and date of each frame.
General tecnical features
Power Supply: from 7,5V to 15V (24V optional)
Working temperature: from 0 to + 60°C
Storing temperature: from -40°C to + 85°C
Dimensions: 161 x 78 (6.34 x 3.07 inches)
Interfaces:
- 1 RS232 serial to link an external device
- 1 RS232 serial to link a PC
Allowed baudrates: 1200, 2400, 4800, 9600, 19200, 38400, 57600
Input trigger: it can be linked as a button or as contact (customizable open circuit or short circuit)
Storing
Total memory capacity: 256kbit (32kbyte)
Maximum number of erase or write cycles: 100.000
Eight LEDs present on board suggests how much memory is full.
Mechanical features
Dimensions: 161 x 78 mm (6.34 x 3.07 inches)
Power connector: Terminal block – 5mm pitch
Trigger connector: Terminal block – 5mm pitch
PC serial connector: DB9 female
Logger serial connector: DB9 male
Serial communication
Standard: EIA RS-232 (CCITT V21/V24)
Speed (toward PC): 57.600 baud, hardware RTS/CTS controlled
Speed (toward device): user customizing (from 1.200 to 57.600 baud, with hardware RTS/CTS flow control or none customizing too)
